Factory IO Box Sorting System

Navigate this project

• 1. Project Overview
• 2. Engineering Objectives
• 3. System Architecture
• 4. Control Philosophy
• 5. Sorting Sequence
• 6. FIFO Tracking Logic
• 7. PLC Implementation
• 8. Technical Skills Demonstrated

System Architecture

The system is structured around a conveyor-based material handling process. Boxes enter the system through the entry conveyor and feeder conveyor, pass through the size detection area, continue along the belt, and eventually arrive at the unload turntable. The PLC continuously evaluates sensor states, tracks stored box types, and commands the correct actuator response.

Because the size sensors and unloading station are separated by distance, the control system uses a queue-based architecture. When a box is measured, its classification is pushed into FIFO memory. When a box reaches the sorting point, the oldest stored value is popped from FIFO memory and used as the sorting decision for that box.

This architecture separates the machine into clear responsibilities: sensors identify the box, FIFO memory tracks the box, and the unload logic acts only when the physical box reaches the sorting station. This separation made the system easier to troubleshoot and allowed the sorting logic to remain stable even when multiple boxes were present on the belt.

Control Philosophy

The control philosophy for this project was based on deterministic material tracking. Instead of making the sorting decision from the current state of the size sensors, the PLC records the box type at the detection point and uses that stored value later when the same box reaches the unload turntable.

This approach is important because the sensor area and sorting area are far apart. By the time a box reaches the turntable, the size sensors may already be detecting a different box. Without memory, the PLC could incorrectly assign the newest sensor reading to the wrong physical box.

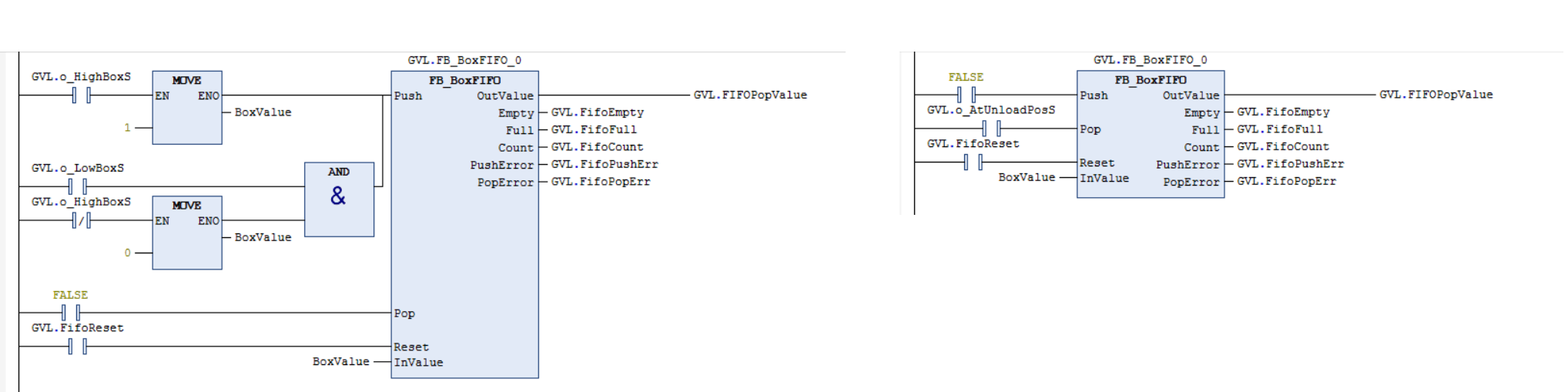

Ladder Logic call of the FIFO function block, where size detection pushes the box type and the unload station pops the next sorting decision.

This made the project behave much closer to an industrial conveyor tracking system, where objects are identified upstream and routed downstream after a delay caused by conveyor travel distance.

Sorting Sequence

The sorting sequence was designed so that each step has a clear trigger and a clear control action. This prevents the PLC from mixing sensor states from different parts of the conveyor and makes the process easier to troubleshoot during commissioning.

This sequence allowed the system to sort continuously instead of relying on one box being fully completed before the next one enters the conveyor.

FIFO Tracking Logic

The FIFO function block is the core of the multi-box tracking solution. It stores integer values in a circular buffer and exposes useful status outputs such as Empty, Full, Count, PushError, and PopError. This makes the logic easier to monitor during testing and helps identify issues such as popping from an empty queue or pushing when the queue is full.

The function block uses rising-edge detection internally, so a sensor that remains on for several PLC scans only creates one push or pop event. This is important because a box may stay in front of a photoeye for longer than one PLC scan.

FUNCTION_BLOCK FB_BoxFIFO
VAR_INPUT
    Push    : BOOL;   // Add a new box type on rising edge
    Pop     : BOOL;   // Read/remove oldest box type on rising edge
    Reset   : BOOL;   // Clear FIFO
    InValue : INT;    // 0 = small, 1 = big
END_VAR

VAR_OUTPUT
    OutValue  : INT;
    Empty     : BOOL;
    Full      : BOOL;
    Count     : INT;
    PushError : BOOL;
    PopError  : BOOL;
END_VAR

VAR
    Buffer   : ARRAY[0..19] OF INT;
    Head     : INT := 0;
    Tail     : INT := 0;
    Size     : INT := 20;
    PushOld  : BOOL := FALSE;
    PopOld   : BOOL := FALSE;
    PushEdge : BOOL;
    PopEdge  : BOOL;
END_VAR

PushEdge := Push AND NOT PushOld;
PopEdge  := Pop AND NOT PopOld;

PushOld := Push;
PopOld  := Pop;

IF Reset THEN
    Head := 0;
    Tail := 0;
    Count := 0;
    OutValue := 0;
    Empty := TRUE;
    Full := FALSE;
    PushError := FALSE;
    PopError := FALSE;
ELSE
    PushError := FALSE;
    PopError := FALSE;

    IF PushEdge THEN
        IF Count < Size THEN
            Buffer[Tail] := InValue;
            Tail := Tail + 1;
            IF Tail >= Size THEN
                Tail := 0;
            END_IF;
            Count := Count + 1;
        ELSE
            PushError := TRUE;
        END_IF;
    END_IF;

    IF PopEdge THEN
        IF Count > 0 THEN
            OutValue := Buffer[Head];
            Head := Head + 1;
            IF Head >= Size THEN
                Head := 0;
            END_IF;
            Count := Count - 1;
        ELSE
            PopError := TRUE;
        END_IF;
    END_IF;

    Empty := Count = 0;
    Full  := Count >= Size;
END_IF;

In the main PLC program, the FIFO block is called from Ladder Logic. The push input is triggered by the upstream box detection point, the pop input is triggered by the unload point, and the output value is used to decide which route the current box should take.

PLC Implementation

The PLC implementation combines Ladder Logic and Structured Text. Ladder Logic was used for the main machine sequence because it provides clear visibility for conveyor outputs, turntable commands, timers, and sensor conditions. Structured Text was used for the reusable FIFO function block because the queue logic is cleaner and more maintainable when written as indexed buffer logic.

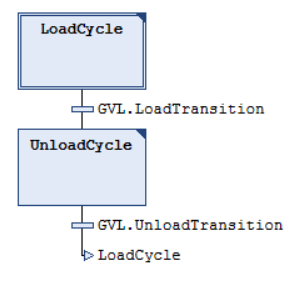

The PLC program was structured around a GRAPH-based sequence that coordinated the load and unload phases of the sorting process. The LoadCycle handled box entry and preparation for sorting, while the UnloadCycle managed the turntable and discharge operation. Transitions such as GVL.LoadTransition and GVL.UnloadTransition were used to move between these states, ensuring that the system followed a deterministic and repeatable operating sequence.

Sequence control implemented using GRAPH, linking the load and unload cycles through defined transition conditions. This structure allowed the box sorting process to operate in a repeatable cycle, coordinating conveyor movement, turntable positioning, and unloading logic.

A key learning outcome was understanding that physical distance in a conveyor system must be represented logically in the PLC. The sensors only provide information at specific locations, so the program must bridge the gap by storing and recalling information at the correct moment.

Key Technical Skills Demonstrated

This project brought together several practical controls engineering skills, including PLC programming, sensor-based sequencing, reusable function block design, conveyor tracking, and commissioning-style troubleshooting.

Overall, this project demonstrates my ability to build a working PLC automation solution that handles real sequencing challenges, not just simple input-output control. The FIFO-based tracking method shows practical thinking around conveyor systems, part identity, and reusable control logic.
